Long Bar Light (400 to 2500mm)
VL-BAL Series Long Size Bar Light
• Robust mechanical design
• High power for long range applications
• Up to 2500mm length
• 24VDC power supply
• Low power consumption
Features

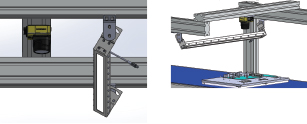

How to use
Product Types
| Model | Color | Wavelength/Color Temperature | Power Supply | Power Consumption | IP Raiting | Cable Length/Connection | Dimensions | Housing Material | Light Angle (°) | ||||
| A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | |||||||||
| VL-BAL-25-400-R-24-C30 | R | 660nm | 24VDC | 11W | IP50 | M8 4 pin w 300mm cable | 25 | 400 | 49 | 455 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-400-W-24-C30 | W | 9000K | 24VDC | 16W | IP50 | M8 4 pin w 300mm cable | 25 | 400 | 49 | 455 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-500-R-24-C30 | R | 660nm | 24VDC | 14W | IP50 | M8 4 pin w 300mm cable | 25 | 500 | 49 | 555 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-500-W-24-C30 | W | 9000K | 24VDC | 20W | IP50 | M8 4 pin w 300mm cable | 25 | 500 | 49 | 555 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-600-R-24-C30 | R | 660nm | 24VDC | 16W | IP50 | M8 4 pin w 300mm cable | 25 | 600 | 49 | 655 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-600-W-24-C30 | W | 9000K | 24VDC | 24W | IP50 | M8 4 pin w 300mm cable | 25 | 600 | 49 | 655 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-700-R-24-C30 | R | 660nm | 24VDC | 19W | IP50 | M8 4 pin w 300mm cable | 25 | 700 | 49 | 755 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-700-W-24-C30 | W | 9000K | 24VDC | 28W | IP50 | M8 4 pin w 300mm cable | 25 | 700 | 49 | 755 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-800-R-24-C30 | R | 660nm | 24VDC | 22W | IP50 | M8 4 pin w 300mm cable | 25 | 800 | 49 | 855 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-800-W-24-C30 | W | 9000K | 24VDC | 32W | IP50 | M8 4 pin w 300mm cable | 25 | 800 | 49 | 855 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-900-R-24-C30 | R | 660nm | 24VDC | 24W | IP50 | M8 4 pin w 300mm cable | 25 | 900 | 49 | 955 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-900-W-24-C30 | W | 9000K | 24VDC | 36W | IP50 | M8 4 pin w 300mm cable | 25 | 900 | 49 | 955 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1000-R-24-C30 | R | 660nm | 24VDC | 27W | IP50 | M8 4 pin w 300mm cable | 25 | 1000 | 49 | 1055 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1000-W-24-C30 | W | 9000K | 24VDC | 40W | IP50 | M8 4 pin w 300mm cable | 25 | 1000 | 49 | 1055 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1100-R-24-C30 | R | 660nm | 24VDC | 30W | IP50 | M8 4 pin w 300mm cable | 25 | 1100 | 49 | 1155 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1100-W-24-C30 | W | 9000K | 24VDC | 44W | IP50 | M8 4 pin w 300mm cable | 25 | 1100 | 49 | 1155 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1300-R-24-C30 | R | 660nm | 24VDC | 35W | IP50 | M8 4 pin w 300mm cable | 25 | 1300 | 49 | 1355 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1300-W-24-C30 | W | 9000K | 24VDC | 52W | IP50 | M8 4 pin w 300mm cable | 25 | 1300 | 49 | 1355 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1500-R-24-C30 | R | 660nm | 24VDC | 40W | IP50 | M8 4 pin w 300mm cable | 25 | 1500 | 49 | 1555 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1500-W-24-C30 | W | 9000K | 24VDC | 60W | IP50 | M8 4 pin w 300mm cable | 25 | 1500 | 49 | 1555 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1700-R-24-C30 | R | 660nm | 24VDC | 46W | IP50 | M8 4 pin w 300mm cable | 25 | 1700 | 49 | 1755 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-1700-W-24-C30 | W | 9000K | 24VDC | 68W | IP50 | M8 4 pin w 300mm cable | 25 | 1700 | 49 | 1755 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-2000-R-24-C30 | R | 660nm | 24VDC | 53W | IP50 | M8 4 pin w 300mm cable | 25 | 2000 | 49 | 2055 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-2000-W-24-C30 | W | 9000K | 24VDC | 80W | IP50 | M8 4 pin w 300mm cable | 25 | 2000 | 49 | 2055 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-2500-R-24-C30 | R | 660nm | 24VDC | 65W | IP50 | M8 4 pin w 300mm cable | 25 | 2500 | 49 | 2555 | 100 | Steel (Black, Painted) | 30° |
| VL-BAL-25-2500-W-24-C30 | W | 9000K | 24VDC | 100W | IP50 | M8 4 pin w 300mm cable | 25 | 2500 | 49 | 2555 | 100 | Steel (Black, Painted) | 30° |
Sample Applications
Electrical Connection
